Tackling the build of the Pocket Operator Modular 400 after doing the 170 was a good idea! Whist the build is quite straight forward, there were a few things that I learned along the way with the POM-170 that made it a lot more straight forward the second time around.

To start with, the bending of the metal chassis was more familiar and whilst some of the actual bends were more ‘extreme’, bending beyond 90° angles, I definitely felt that I had developed a good technique, bending against the flat surface of my tabletop, bending the whole surface slowly at the same time, doing my best not to ‘crack the paint’ by doing it too quickly.

The POM-400 build differs from the POM-170 in that you do all the chassis bending as the first step, so once it’s done that, and put together the main structure, really feels like you’ve done the majority of the ‘scary’ stuff.

A should let you know that whilst I was building the 400, I was also watching the ‘POM-400 live build’ video that Tobias and Albin from TE did during Midnight Operator Episode 8. This was a bit like building with a buddy and I highly recommend it!

Putting in the power distribution and modules was really easy and straight forward. I used the technique of attaching the spacers to the chassis first, then attaching to the module to the spacers. I found this easy as I could do the vast majority of screw-tightening by hand. The final *loose* tightening I did with a screw-driver rather than the included tool.

The 400 has a lot of modules, and as such, by the time all were installed, there were cables everywhere! I decided to get some yellow cable ties and organise this prior to attaching the front face-plate with the modules to the back chassis.

The final piece of the puzzle, once everything is screwed together is attaching all of the lego-styled knobs. This takes some time, and precision to ensure that all of them are set to zero in the same place.

I found this a really straight forward build, and even though there are a lot more modules, it probably took me around the same build time as the 170.

Sounds and patch ideas to come!

“I admit it… I’m a total music nerd”

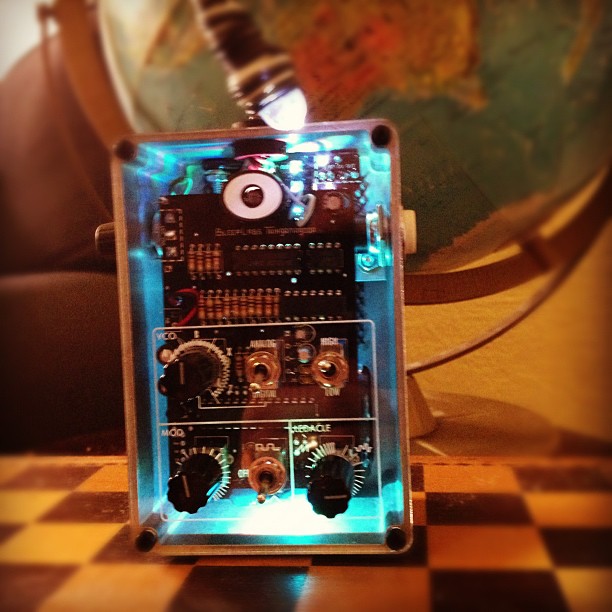

So… I’m a totally sucker for making from kits… I get heaps of satisfaction from putting together all sorts of noise and music making devices including Bleep Labs Thingamagoop 2 RGB and Cat Full of Ghosts Yowler synth.

I even enjoy ripping open old 80’s battery operated keyboards and connecting wires in places just to see what happens. Often nothing, sometimes fun weird things. I admit it… I’m a total music nerd.

I’ve been super excited to get hold of Teenage Engineering Pocket Modular synths, so by the time the PO-400 and PO-170 arrived, I was itching to rip open the ‘flat pack’ boxes and get into it.

I thought I’d start with building the 170, as it’s a bit smaller, and I thought I should document the build process and then be able to give a couple of working tips to help others get their build right the ‘first time’.

The other thing I am a sucker for is a good aesthetic. Teenage Engineering does this down to the smallest minutia…. packaging. leads. font. graphics. dimensions. colour. I love it all.

My first piece of advice for fellow builders is to put all of the screws and small pieces in small containers. I did this to ensure that they didn’t roll of my table or get lost amongst the stuff on my desk.

Second piece of advice is to attach the power distro board first. If you put the modules in to start with, you’ll find that some of the power distro screws are difficult to reach, and you really only want to be putting in these screws once, as they have the potential to thread the metal casing if tighten too much, or are screwed in and out too many times.

FWIW, I attached the spacers to the case before I attached them to the modules. This is different to what the build guide suggests, but I found that it worked really well.

I attached the power distro, modules and speaker before bending the metal casing. The speaker fits pretty snug in the space, so when you’re attaching the modules to the power distro, connect them to the centre plugs, because they won’t fit next to the speaker when you bend the case into place.

The bending itself feels like a critical point in the build that you don’t want to get wrong. I bent by pushing the edges into the table top. I was able to do it slow, methodically, with an even pressure that allowed for good results at the bend points.

After bending the metal frame, attaching the keyboard module with its rubber stopper was really straight forward. A tip for attaching the stick-on key-bed is to spend a little time identifying the horizontal alignment and centre position, because this is a part you are only going to be wanting to attach one time.

Once everything is in and screwed together, you can start putting in all of the lego-styled knobs. Pay attention here to the small indentations in each and align them to the zero-point of the potentiometer. The small ones in particular are pretty fiddly to get on, so it’s good to get it right the first time.

If I was to point you in the direction of the most helpful resources for this build, I found both TE’s PO-modular 170 online guide and Alissa’s build video the most useful.

I recently sat down (over zoom) with James Jennings to do this interview about my new “Cinematic Rhythms” course for Melodics, as well as a little about my musical past and things that have shaped my musical path.

If you’re unfamiliar with Melodics, it’s a Music training app for Keys, Pads and Drums. Available for both computer and iOS.

Check it out @Melodics

Melodics - Cinematic Rhythms

Screen Shot 2018-11-25 at 2.03.49 pm.png

Hi all, Recently I was asked to contribute some Chord Sets to the wonderful Scaler Plugin. It’s a remarkable plugin, which allows you to create harmonic material easily.

I sat down at the piano and played a bunch of chord progressions that I regularly gravitate towards, and then provided them to Davide Carbone who is one of the brains behind it.

A week or so later with Scaler’s release, there I am, listed next to a bunch of amazing artists.

The idea of a plugin that provides you with chord progressions of various artists may seem a bit like *borrowing* someone else’s ideas. But once you get the hang of what it can offer, it’s actually not like that at all.

I’m finding that using my own presets as a starting point, and then using the variations feature allows me to discover chords that I may not have normally gone for, but adds those occasional harmonic variations that keep things interesting.

You should check it out!

Scaler

Screen Shot 2018-11-25 at 2.17.58 pm.png

I have recently been working some material up for the Melodics App, which is an app that aims to make learning how to play finger drum pads and piano fun and engaging.

The aim of my course was to get users to understand some of the techniques used in creating cinematic-styled music.

There are six compositions you can play along with; Space Between that helps you explore the idea of less is often more, and to listen to the space between notes. Character & Theme works on the idea that a simple musical theme can be synonymous with a character in a film. Drama & Rhythm builds tension through the use of dramatic deep strings and tense percussive elements. Tension & Dissonance works with closely clustered notes to create something melancholic and tense. Deep Melody puts everything together to create a deep cinematic world, and Chords Uplifting resolves the whole course as an epic uplifting grand finale!



Screen Shot 2018-11-25 at 3.20.29 pm



To celebrate the release of my new EP Streamers, I’m giving away a set of Instrument Racks that are compatible with Ableton Live 10. These instruments use many of the new features and FX available in Live 10, including Echo, Drum Bus and Pedal.

Each instrument uses original audio files from each track on the EP, but they are more of a ‘re-imagining’ of the sonic landscape of each track, and are designed to be immensely playable using the pre-mapped 8 Macros, and hopefully creatively inspiring to you.

I used similar techniques for many of the instruments that I utilised in the commercial Analogue Sequences Pack that I created for School of Synthesis, which is available at Loopmasters. This technique involves using the Slice feature in Simpler in conjunction with carefully mapped Arpeggiator settings to create ‘playable’ sequences. It is particularly fun to play with using an Ableton Push controller in it’s 64 Pad drum rack mode, though can be played with any midi controller.

These are freely available to you to use as you wish, but if you find them racks inspiring consider donating a dollar. or downloading the Streamers EP via Bandcamp for a couple of dollars!

Download the instrument racks in .alp format here.

Have a listen to Streamers on Spotify  or via Bandcamp below

Streamers (2018) -Winterpark - Cover Art- LoRes








As a side to my work at Ableton User Group Melbourne, I was privileged to be part of the team programming and putting on Process- A Sonic Forum: a day-long event that brought together a whole stack of musicians working in the field of music technology talking not about Industry, but about arts practice and creativity.

We had wonderful presentations and workshops put on by Darrin Verhagen, Ben Byrne, Chiara Kickdrum, Chris Vik, the Monash Country Lines Archive, Rainbow Chain, Tom Cosm, Eve Klein and Dennis DeSantis.

MESS (Melbourne Electronic Sound Studio), Found Sound, Ableton and Innovated Music were also all involved in providing a range of Musical Equipment, Synths and Gadgets for participants to play on.

Have a look at the video round-up, and watch this space for future Process events!
